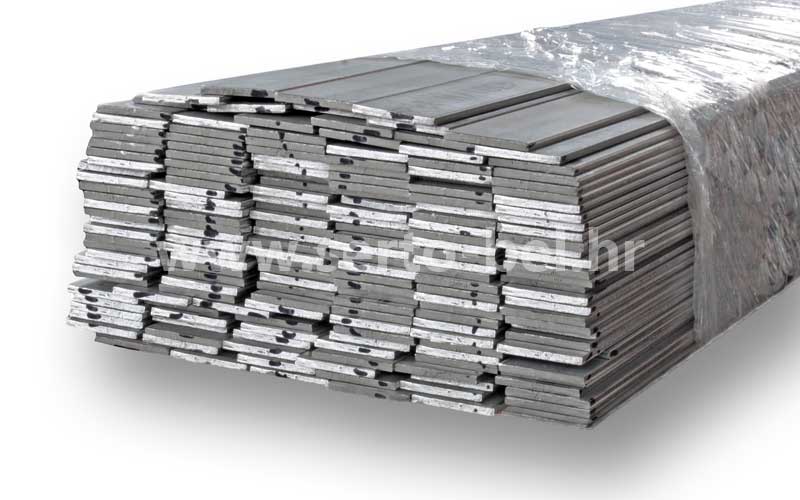

Stainless steel (inox) flat bars

We offer stainless steel flat bars according to EN 10028-7, EN 10088-2, EN 10058, EN 10278 in the following qualities:

AISI 304 - AISI 316L

Production technology of flat stainless steel profiles:

cut from cold rolled sheet
cut from hot rolled sheet
hot rolled
cold drawn (h11)

Standard lengths of flat stainless steel profiles are approx. 4,0 m.

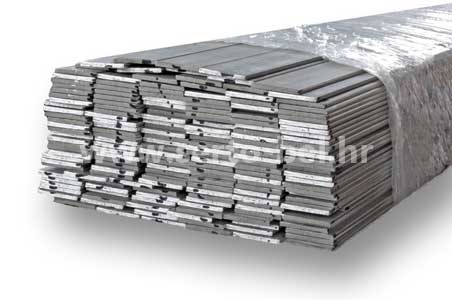

Stainless steel (inox) flat bars

Certificates according to EN 10204/3.1, upon request PED and AD-W

Cut stainless steel (inox) flat bars

WIDTH mm	THICKNESS (mm)
WIDTH mm	3	4	5	6	8	10
10	0,24	0,31
15	0,35	0,47	0,59
20	0,47	0,63	0,79	0,94	1,26
25	0,59	0,79	0,98	1,18	1,57
30	0,71	0,94	1,18	1,41	1,89	2,36
35	0,83	1,10	1,38	1,65	2,20	2,75
40	0,94	1,26	1,57	1,89	2,52	3,14
45	1,06	1,41	1,77	2,12	2,83	3,54
50	1,18	1,57	1,97	2,36	3,14	3,93
60	1,41	1,89	2,36	2,83	3,77	4,72
70	1,65	2,20	2,75	3,30	4,40	5,50
80	1,89	2,52	3,14	3,77	5,03	6,29
90	2,12	2,83	3,54	4,24	5,66	7,07
100	2,36	3,14	3,93	4,72	6,29	7,86
120	2,83	3,77	4,72	5,66	7,55	9,43
150	3,54	4,72	5,90	7,07	9,43	11,79

Rolled stainless steel (inox) flat bars

WIDTH mm	THICKNESS (mm)
WIDTH mm	6	8	10	12	15	20	25	30	40	50
10
15	0,71	0,94	1,18
20			1,57	1,89	2,36
25			1,97	2,36	2,95	3,93
30				2,83	3,54	4,72
35				3,30	4,13	5,50
40				3,77	4,72	6,29	7,86
45				4,24	5,31	7,07	8,84
50				4,72	5,90	7,86	9,83	11,79
60				5,66	7,07	9,43	11,79	14,15	18,86
70				6,60	8,25	11,00	13,76	16,51	22,01
80				7,55	9,43	12,58	15,72	18,86	25,15
90				8,49	10,61	14,15	17,69	21,22	28,30	35,37
100				9,43	11,79	15,72	19,65	23,58	31,44	39,30
120				11,32	14,15	18,86	23,58	28,30	37,73	47,16
150				14,15	17,70	23,55
