Sales Stainless Steel Assortment

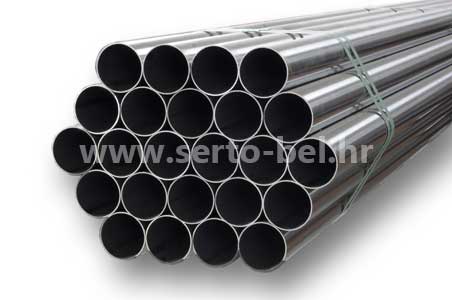

Stainless steel (inox) welded round tubes
We offer stainless steel welded round tubes according to EN 10217-7, EN 10296-2, EN 10357 in the following qualities:
AISI 304 - AISI 316L - AISI 316 Ti
With respect to the quality of surface of stainless steel welded tubes, we offer as follows:
- pickled tubes
- brushed tubes
- polished tubes
- mirror polished tubes
- mirror polished outside/polished inside
Welding procedures:
- TIG
- HF (high frequency)
- LASER
Standard lengths of stainless steel tubes are 6,0 m.
Certificates according to EN 10204/3.1, for TIG tubes upon request PED and AD-W
Stainless steel (inox) welded round tubes: Outside diameter Ø 6 - Ø 32 mm
| DN | inch | OUTSIDE DIAMETER mm | THICKNESS mm | WEIGHT kg/m |
|---|---|---|---|---|
| 6 8 10 10 12 12 14 14 14 15 15 16 16 16 | 1 1 1 1,5 1 1,5 1 1,5 2 1 1,5 1 1,5 2 | 0,126 0,174 0,230 0,327 0,282 0,402 0,333 0,480 0,601 0,359 0,519 0,384 0,557 0,702 | ||
| 10 | 3/8" | 17,2 17,2 17,2 | 1 1,5 2 | 0,415 0,603 0,779 |
| 18 18 18 | 1 1,5 2 | 0,435 0,634 0,802 | ||
| 20 20 20 | 1 1,5 2 | 0,487 0,711 0,902 | ||
| 15 | 1/2" | 21,3 21,3 21,3 | 1,5 2 2,5 | 0,760 0,989 1,177 |
| 22 22 22 | 1 1,5 2 | 0,538 0,788 1,002 | ||
| 25 25 25 25 | 1 1,5 2 2,5 | 0,625 0,918 1,199 1,409 | ||
| 20 | 3/4" | 26,9 26,9 26,9 26,9 26,9 | 1 1,5 2 2,5 3 | 0,680 0,974 1,270 1,563 0,796 |
| 28 28 28 | 1 1,5 2 | 0,692 1,018 1,330 | ||
| 30 30 | 1,5 2 | 1,095 1,435 | ||
| 32 32 | 1,5 2 | 1,164 1,525 |
