Sales Stainless Steel Assortment

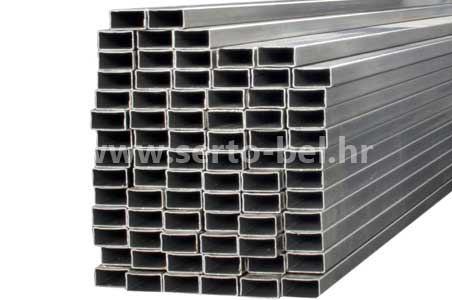

Stainless steel (inox) welded rectangular tubes
We offer stainless steel welded rectangular tubes according to EN 10219-2 in the following qualities:
AISI 304 - AISI 316L
With respect to the quality of surface of stainless steel welded rectangular tubes we offer as follows:
- brushed tubes
- polished tubes
- mirror polished tubes
Stainless steel welded rectangular tubes are welded in HF (high frequency) procedure.
Standard lengths of stainless steel tubes are 6,0 m.
Certificates according to EN 10204/3.1
| DIMENSIONS mm | WEIGHT kg/m |
|---|---|
| 20 × 10 × 1,0 | 0,454 |
| 20 × 10 × 1,2 | 0,539 |
| 20 × 10 × 1,5 | 0,662 |
| 25 × 15 × 1,5 | 0,918 |
| 30 × 10 × 1,5 | 0,918 |
| 30 × 15 × 1,5 | 1,018 |
| 30 × 15 × 2,0 | 1,330 |
| 30 × 20 × 1,2 | 0,921 |
| 30 × 20 × 1,5 | 1,164 |
| 30 × 20 × 2,0 | 1,525 |
| 40 × 15 × 1,5 | 1,287 |
| 40 × 20 × 1,2 | 1,113 |
| 40 × 20 × 1,5 | 1,406 |
| 40 × 20 × 2,0 | 1,850 |
| 40 × 20 × 3,0 | 2,646 |
| 40 × 30 × 1,5 | 1,652 |
| 40 × 30 × 2,0 | 2,178 |
| 50 × 20 × 1,5 | 1,652 |
| 50 × 20 × 2,0 | 2,203 |
| 50 × 25 × 1,5 | 1,799 |
| 50 × 25 × 2,0 | 2,372 |
| 50 × 30 × 1,5 | 1,903 |
| 50 × 30 × 2,0 | 2,511 |
| 50 × 30 × 3,0 | 3,603 |
| 50 × 40 × 1,5 | 2,165 |
| 50 × 40 × 2,0 | 2,830 |
| DIMENSIONS mm | WEIGHT kg/m |
|---|---|
| 50 × 40 × 3,0 | 4,084 |
| 60 × 20 × 1,5 | 1,903 |
| 60 × 20 × 2,0 | 2,460 |
| 60 × 30 × 1,5 | 2,130 |
| 60 × 30 × 2,0 | 2,815 |
| 60 × 30 × 3,0 | 4,170 |
| 60 × 40 × 1,5 | 2,380 |
| 60 × 40 × 2,0 | 3,150 |
| 60 × 40 × 3,0 | 4,650 |
| 80 × 40 × 1,5 | 2,870 |
| 80 × 40 × 2,0 | 3,800 |
| 80 × 40 × 3,0 | 5,620 |
| 80 × 40 × 4,0 | 7,355 |
| 100 × 40 × 1,5 | 3,360 |
| 100 × 40 × 2,0 | 4,500 |
| 100 × 40 × 3,0 | 6,680 |
| 100 × 50 × 2,0 | 4,800 |
| 100 × 50 × 3,0 | 7,120 |
| 100 × 50× 4,0 | 9,169 |
| 100 × 60 × 2,0 | 5,104 |
| 100 × 60 × 3,0 | 7,580 |
| 120 × 60 × 2,0 | 5,642 |
| 120 × 60 × 3,0 | 8,388 |
| 120 × 80 × 2,0 | 6,280 |
| 120 × 80 × 3,0 | 9,345 |
