Sales Stainless Steel Assortment

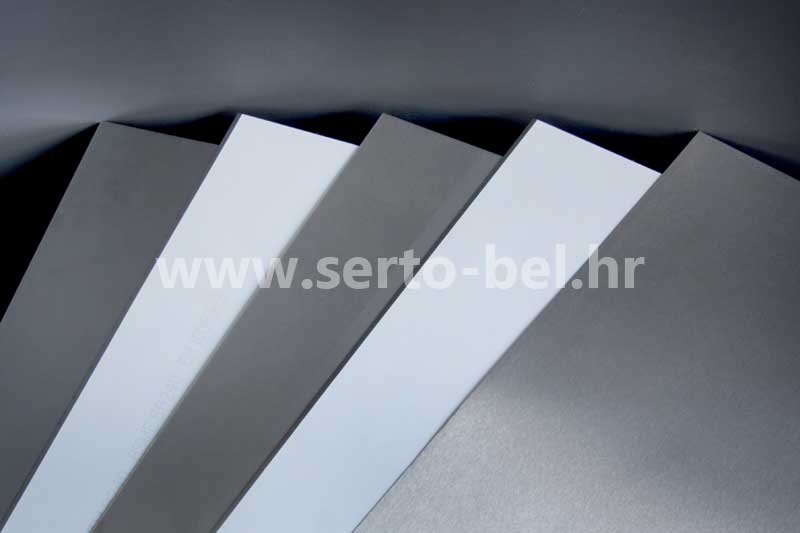

Stainless steel (inox) cold-rolled sheets
We offer stainless steel cold rolled sheets according to EN 10088-2, EN 10028-7, ISO 9445 in the following qualities:
AISI 304 - AISI 304L - AISI 321
AISI 316L - AISI 316 Ti - AISI 430
AISI 309S - AISI 310S
With respect to production technology of cold rolled stainless steel sheets, we offer:
- 2B (IIIc) - cold rolled, heat treated, pickled
- BA (IIId, 2R) - cold rolled, annealed
Surface finish:
- SCOTCH BRITTE + PVC foil
- polished + PVC foil
- machine polished + PVC foil (so-called MIRROR, upon request only)
- round polished + PVC foil (upon request only)
Commercial formats:
- standard dimension plates
- plates cut to measure, coils, strips (upon request only)
Certificates according to EN 10204/3.1, compliant with PED and AD-W requirements
| DIMENSIONS mm | THICKNESS (mm) | |||||
|---|---|---|---|---|---|---|
| 0,3 | 0,4 | 0,5 | 0,6 | 0,8 | 1,0 | |
| 1000x2000 | 4,8 | 6,4 | 8,0 | 9,6 | 12,8 | 16,0 |
| 1000x3000 | 7,2 | 9,6 | 12,0 | 14,4 | 19,2 | 24,0 |
| 1000x4000 | 9,6 | 12,8 | 16,0 | 19,2 | 25,6 | 32,0 |
| 1250x2500 | 12,5 | 15,0 | 20,0 | 25,0 | ||
| 1250x3000 | 15,0 | 18,0 | 24,0 | 30,0 | ||
| 1250x4000 | 20,0 | 24,0 | 32,0 | 40,0 | ||
| 1500x3000 | 28,8 | 36,0 | ||||
| 1500x4000 | 38,4 | 48,0 | ||||
| 1500x6000 | 57,6 | 72,0 | ||||
| 2000x4000 | ||||||
| 2000x6000 | ||||||
| 2500x6000 | ||||||
| DIMENSIONS mm | THICKNESS (mm) | |||||
|---|---|---|---|---|---|---|
| 1,2 | 1,5 | 2,0 | 2,5 | 3,0 | 4,0 | |
| 1000x2000 | 19,2 | 24,0 | 32,0 | 40,0 | 48,0 | 64,0 |
| 1000x3000 | 28,8 | 36,0 | 48,0 | 60,0 | 72,0 | 96,0 |
| 1000x4000 | 38,4 | 48,0 | 64,0 | 80,0 | 96,0 | 128,0 |
| 1250x2500 | 30,0 | 37,5 | 50,0 | 62,5 | 75,0 | 100,0 |
| 1250x3000 | 36,0 | 45,0 | 60,0 | 75,0 | 90,0 | 120,0 |
| 1250x4000 | 48,0 | 60,0 | 80,0 | 100,0 | 120,0 | 160,0 |
| 1500x3000 | 43,2 | 54,0 | 72,0 | 90,0 | 108,0 | 144,0 |
| 1500x4000 | 57,6 | 72,0 | 96,0 | 120,0 | 144,0 | 192,0 |
| 1500x6000 | 86,4 | 108,0 | 144,0 | 180,0 | 216,0 | 288,0 |
| 2000x4000 | 96,0 | 128,0 | 160,0 | 192,0 | 256,0 | |
| 2000x6000 | 144,0 | 192,0 | 240,0 | 288,0 | 384,0 | |
| 2500x6000 | 480,0 | |||||
Cold rolled stainless steel sheets are offered in thickness range from 0.5 to 8.0 mm.
Dimensions for the delivery of cold rolled stainless steel sheets in plates:
- 2B, SCOTCH BRITTE + PVC, polished + PVC
- - 0,4 - 0,7 mm WIDTH MAX.: 1250 mm
- - 0,8 - 1,2 mm WIDTH MAX.: 1500 mm
- - 1,5 - 6,0 mm WIDTH MAX.: 2000 mm (width 2000 mm upon request only)
- BA (IIID/2R) + PVC
- - 0,5 - 0,8 mm WIDTH MAX.: 1250 mm
- - 1,0 - 3,0 mm WIDTH MAX.: 1500 mm
Upon inquiry, we offer stainless steel sheets in coils in standard widths of 1000, 1250 and 1500 mm, as well as strips in coils, in widths from 0,4 to 3,0 mm, widths 8,0 to 30,0 mm, inside diameter of coils from 400 to 500 mm.
