Sales Stainless Steel Assortment
Stainless steel (inox) L-profiles
We offer stainless steel L profiles in the following qualities:
AISI 304 - AISI 316L
Production technology of stainless steel L profiles:
- hot rolled
Standard lengths stainless steel L profiles are approx. 6,0 m
Certificates according to EN 10204/3.1

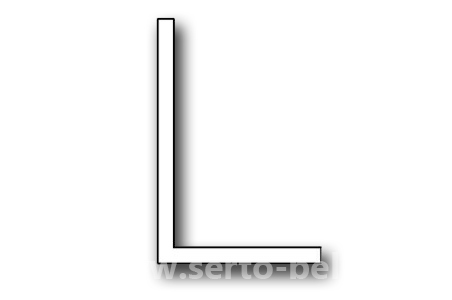

Stainless steel (inox) L-profiles: Height of leg "a" = 20 - 75
| Dimension according to DIN 10056 Produced according to EN-u 10088-3: 1D |  | ||
| a | b | s | [ kg/m ] |
|---|---|---|---|
| 20 | 10 | 3 | 0.65 |
| 25 | 15 | 3 | 0.89 |
| 30 | 15 20 20 20 20 | 3 3 4 5 6 | 1.01 1.13 1.47 1.80 2.11 |
| 40 | 20 20 20 20 30 30 30 30 | 3 4 5 6 3 4 5 6 | 1.37 1.79 2.20 2.59 1.62 2.10 2.60 3.07 |
| 45 | 30 30 30 30 | 3 4 5 6 | 1.73 2.27 2.80 3.31 |
| 50 | 30 30 30 30 40 40 40 40 | 3 4 5 6 3 4 5 6 | 1.85 2.43 3.00 3.54 2.09 2.75 3.40 4.02 |
| 60 | 30 30 30 30 40 40 40 | 5 6 7 8 5 6 8 | 3.40 4.03 4.62 5.25 3.80 4.51 5.82 |
| 65 | 50 50 50 50 50 | 5 6 7 8 9 | 4.40 5.26 6.05 6.82 7.60 |
| 70 | 50 50 50 50 50 | 5 6 7 8 9 | 4.60 5.47 6.33 7.17 7.99 |
| 75 | 50 50 50 50 50 50 55 55 55 55 55 55 | 5 6 7 8 9 10 5 6 7 8 9 10 | 4.80 5.71 6.61 7.46 8.31 9.15 5.00 5.95 6.89 7.81 8.71 9.60 |
