Sales Stainless Steel Assortment

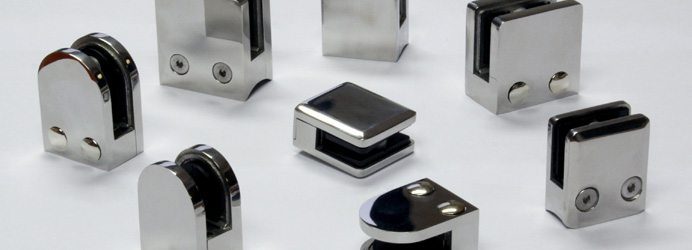

Stainless steel (inox) glass clamps
Stainless steel glass clamps available from stock in qualities:
AISI 304 - AISI 316
- mirror polished, types and dimensions listed below
| Clamps type | Dimension mm | Glass thickness mm | Fits |
|---|---|---|---|
| B02F | 40 × 50 × 28 | 8,0 - 10,0 | Ø 40 / Ø 50 |
| B02P | 40 × 50 × 28 | 8,0 - 10,0 | flat |
| B04F | 45 × 62 × 28 | 10,0 - 12,0 | Ø 50 |
| B04P | 45 × 62 × 28 | 10,0 - 12,0 | flat |
| B05F | 45 × 48 × 25,5 | 8,0 - 10,0 | Ø 40 / Ø 50 |
| B05P | 45 × 48 × 25,5 | 8,0 - 10,0 | flat |
| B10F | 55 × 55 × 33 | 10,0 - 12,0 | Ø 50 |
| B10P | 55 × 55 × 33 | 10,0 - 12,0 | flat |
Other types and quality can be ordered upon request.

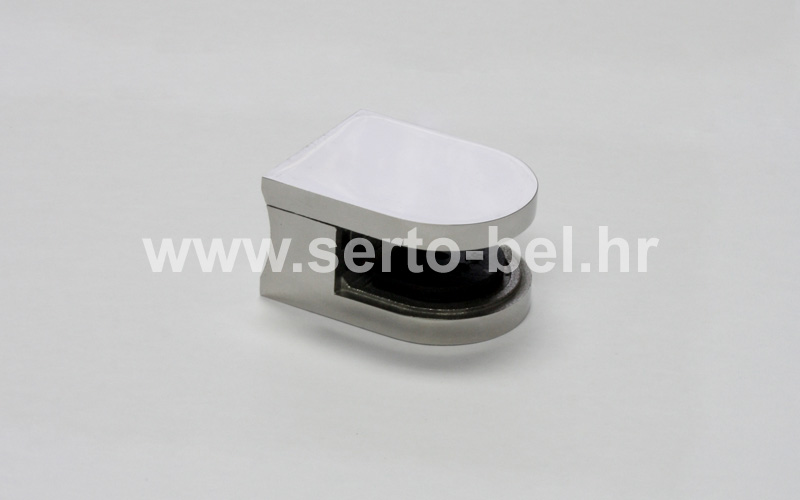

B02F

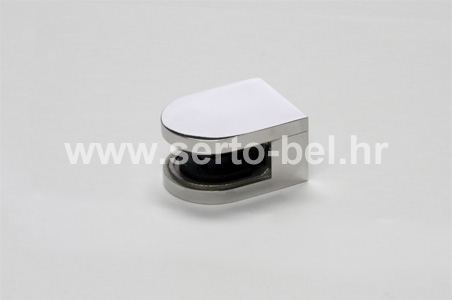

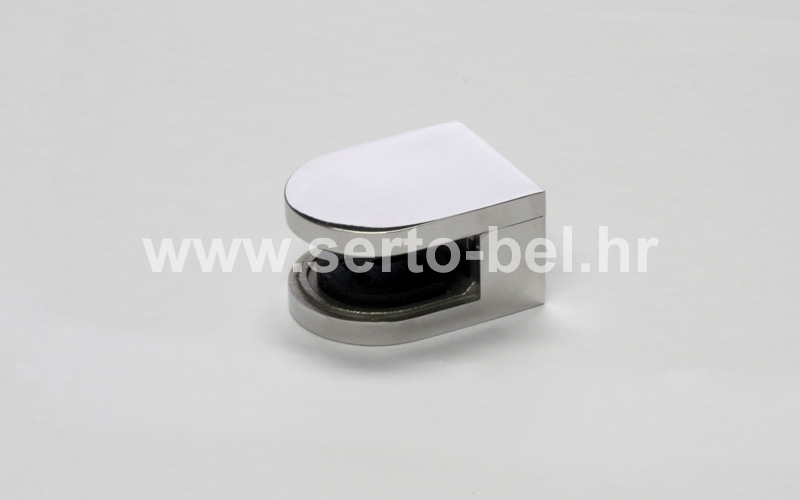

B02P

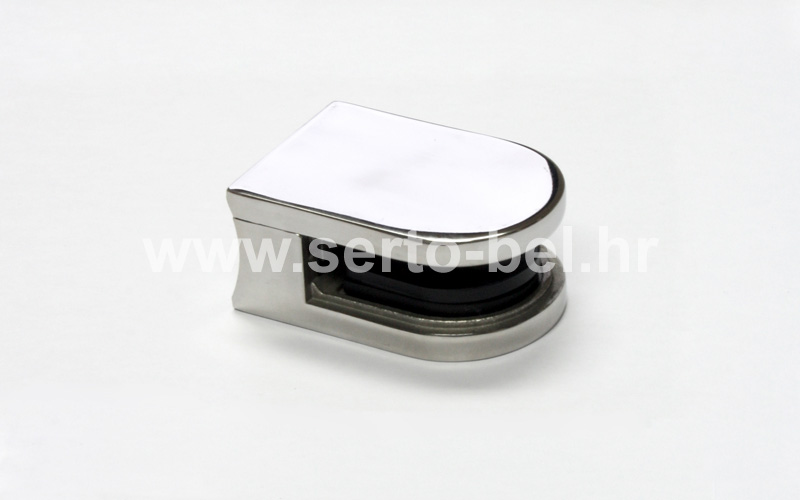

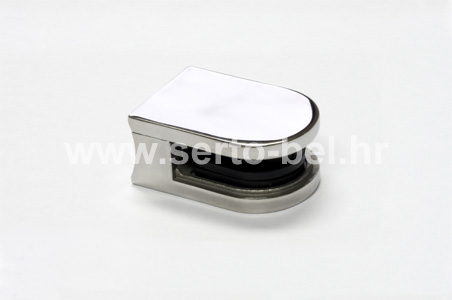

B04F

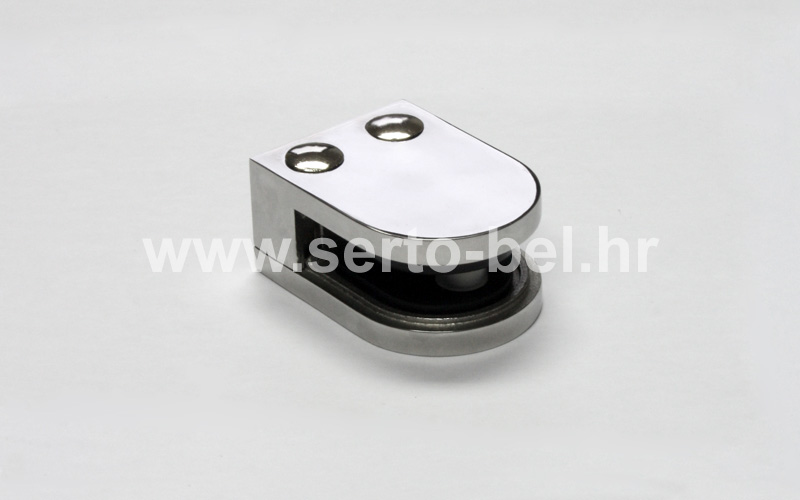

B04P

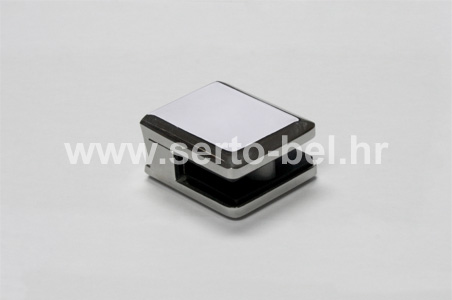

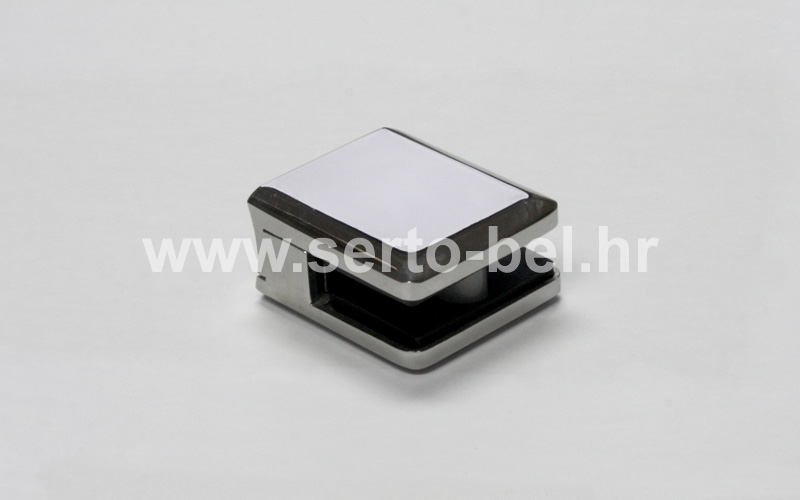

B05F

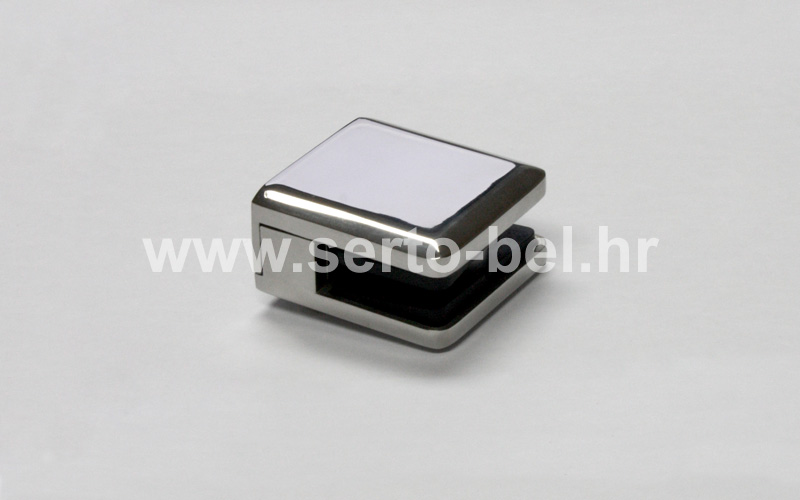

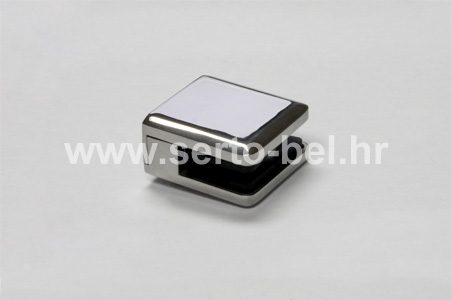

B05P

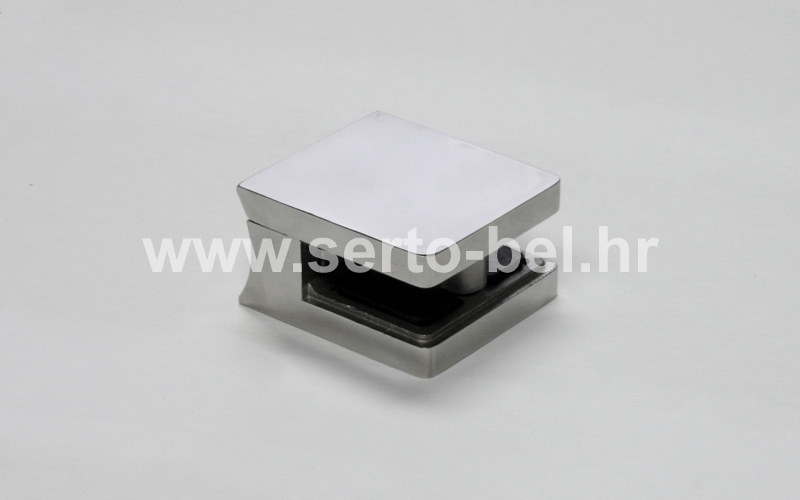

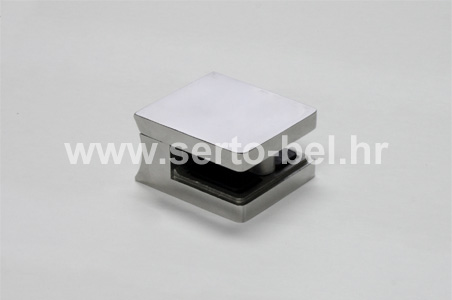

B10F

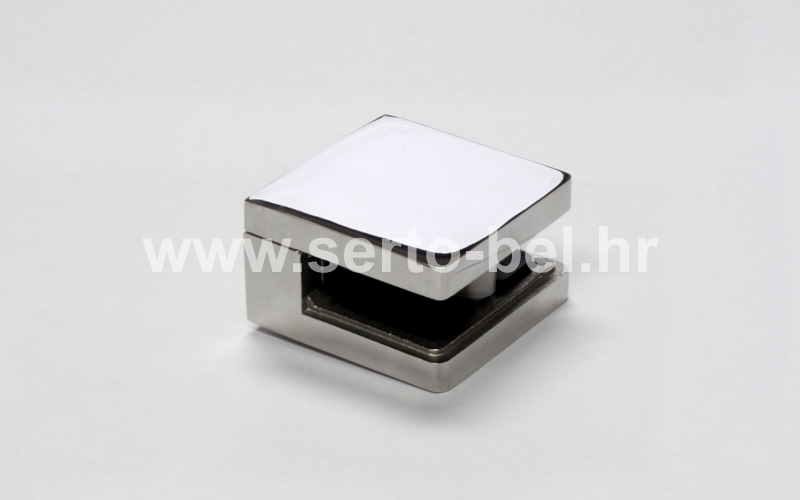

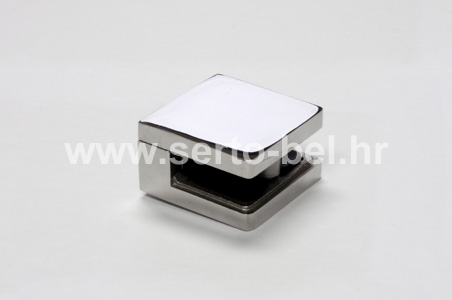

B10P
